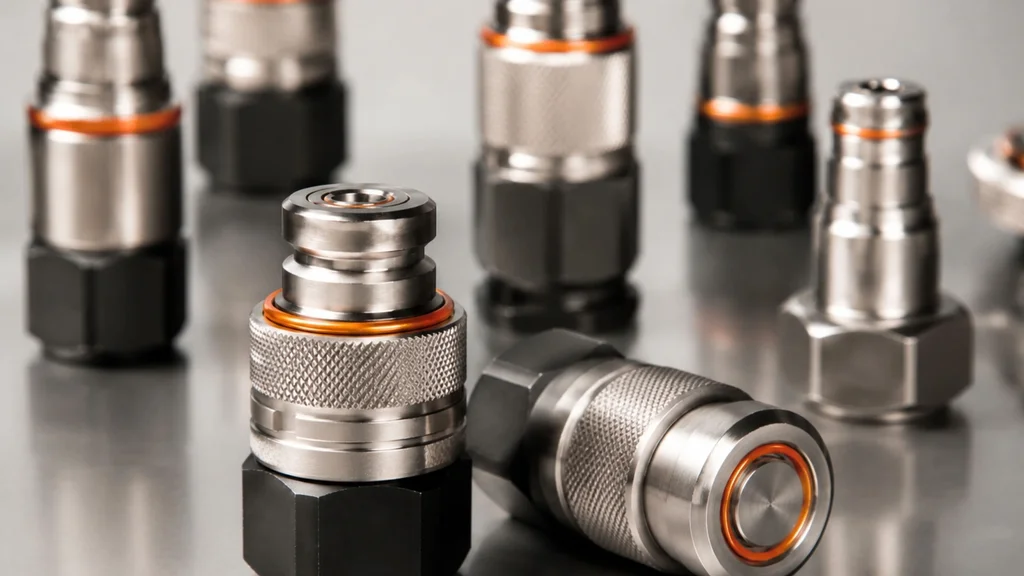

HS
Standard:
ISO 14541
Occlusion:
poppet
Locking:
screw
Material:
steel
Finishing:
Zn-Fe (Cr III)
Threads:
BSP – NPT – SAE – METRIC
Standard seals:
NBR
Working temperature:
-25 °C to+100 °C /-40 °C to+100 °C
Optional seals:
PU,FKM, EPDM or more
Working pressure:
300-450 bar
Connection under pressure:
allowed(both male and female)
Max residual pressure:
100bar
Features
Low Pressure Drop & High System Efficiency
The internal design of the valve and the use of high-strength materials help to achieve a minimum pressure drop and improve system efficiency.
Compact structure.
Threaded Locking Protection
Threaded locking can prevent mechanical wear and brinelling caused by steel ball locking.
Technical data
Nominal size | Working pressure | Rated flow （ISO） | Max flow rate | Burst pressure | Fluid spillage | |||
|
|
|
| Male | Female | Coupled |
| |
HS | ISO | Mpa | l/min | l/min | Mpa | Mpa | Mpa | cc |
HS04 | 6.3 | 45 | 12 | 24 | 190 | 270 | 250 | 0.8 |
HS08 | 10 | 40 | 23 | 46 | 130 | 150 | 180 | 1.9 |
HS10 | 12.5 | 40 | 45 | 90 | 126 | 150 | 140 | 2.7 |
HS12 | 20 | 35 | 106 | 212 | 120 | 130 | 140 | 9.3 |
HS20 | 25 | 35 | 189 | 378 | 120 | 130 | 140 | 16 |
HS25 | 31.5 | 35 | 288 | 576 | 100 | 100 | 100 | 30 |
