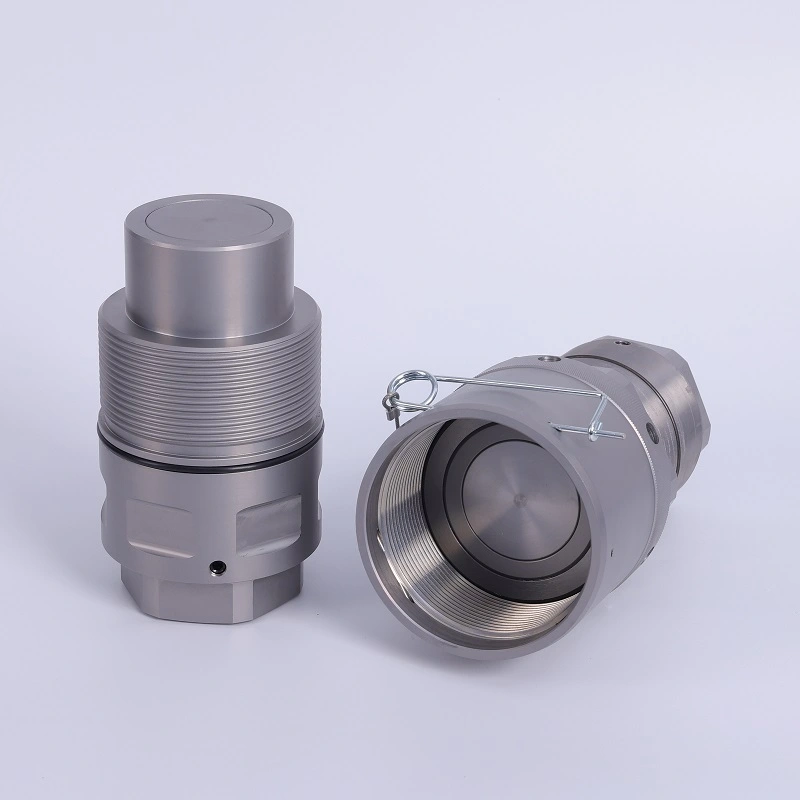

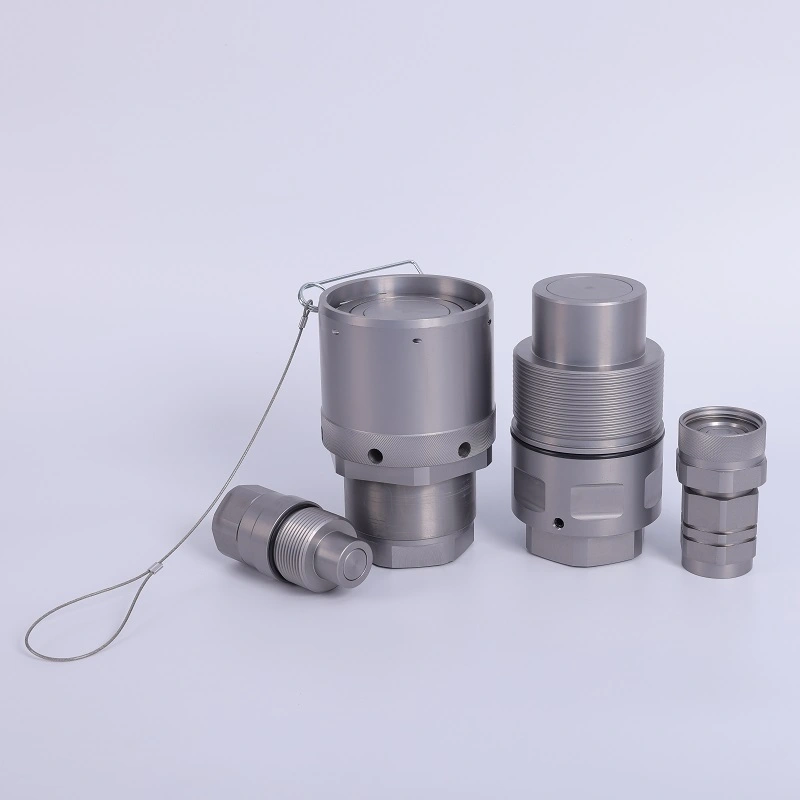

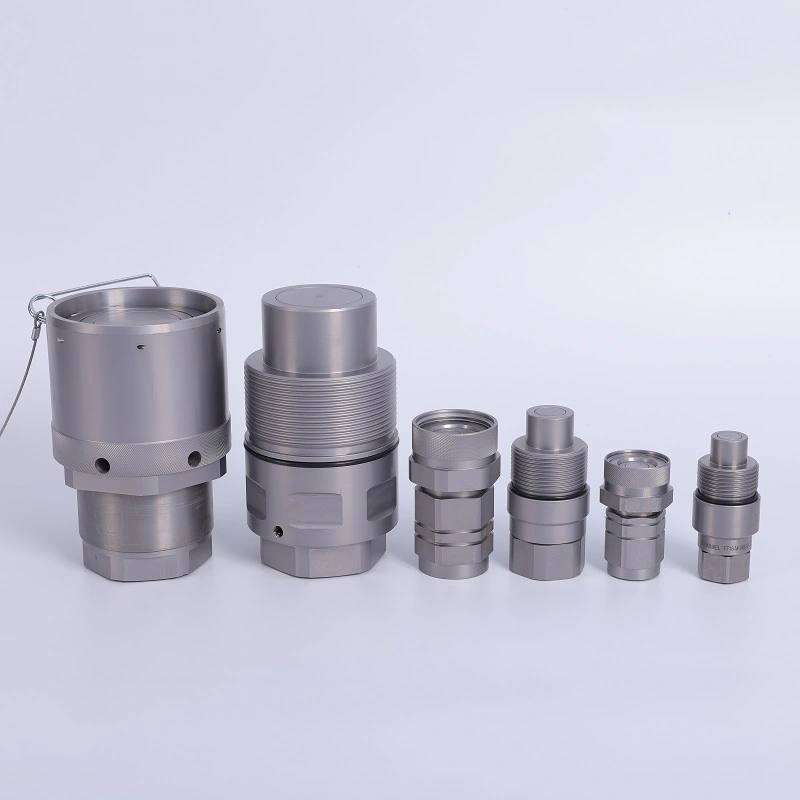

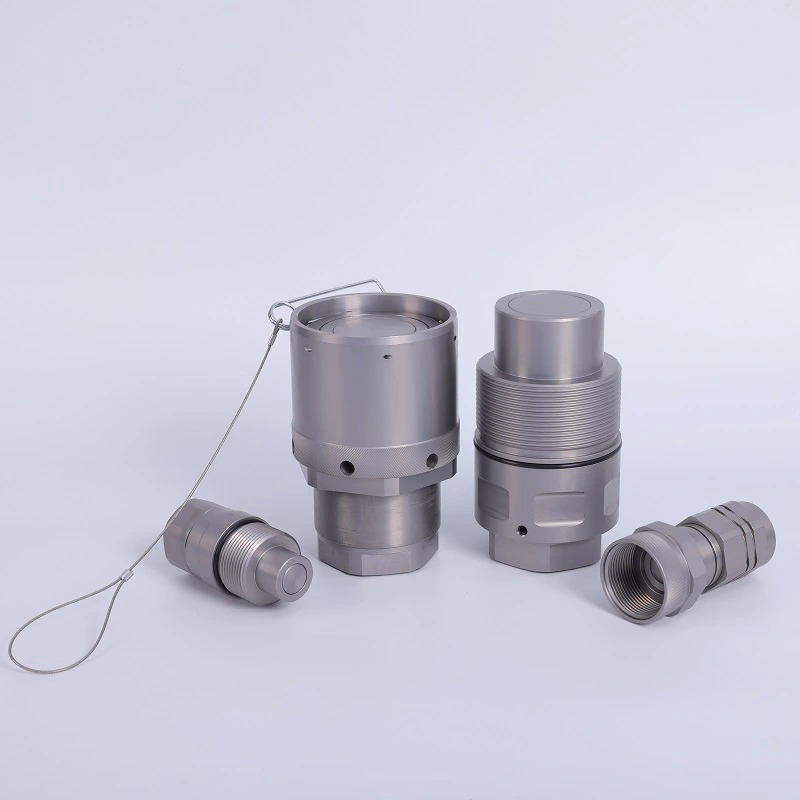

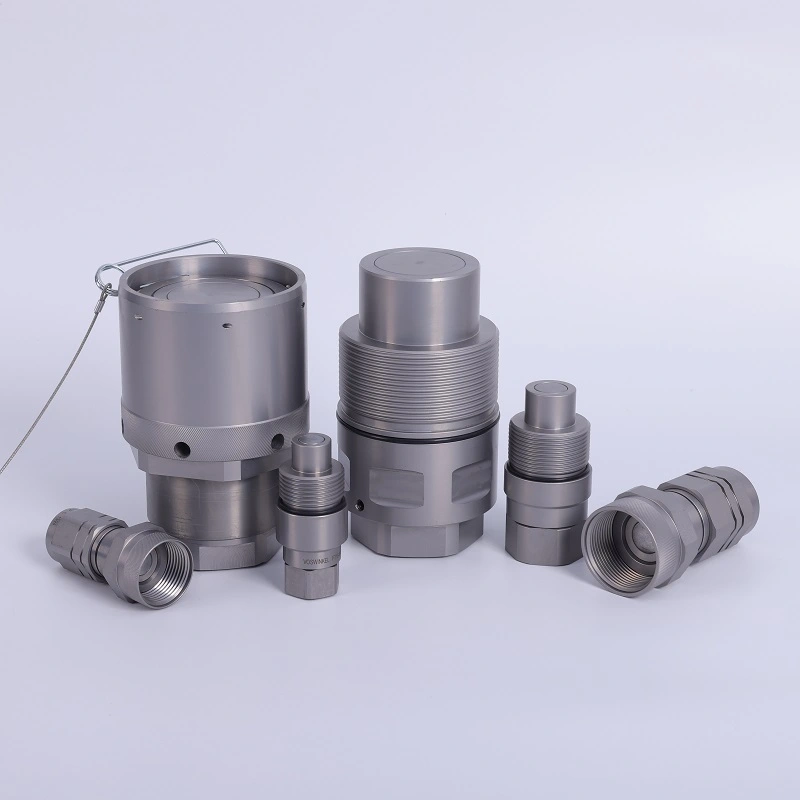

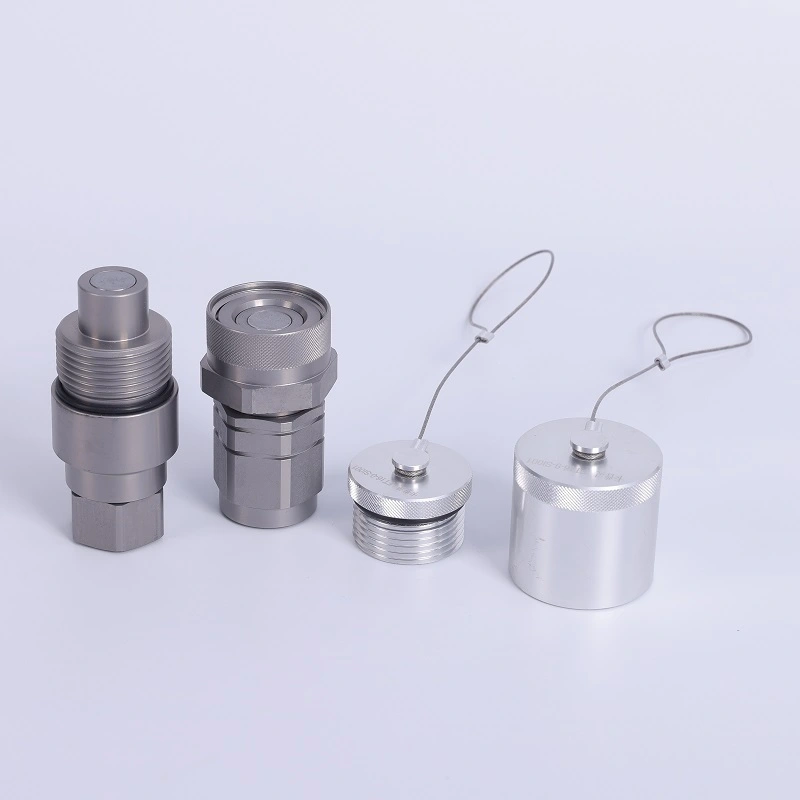

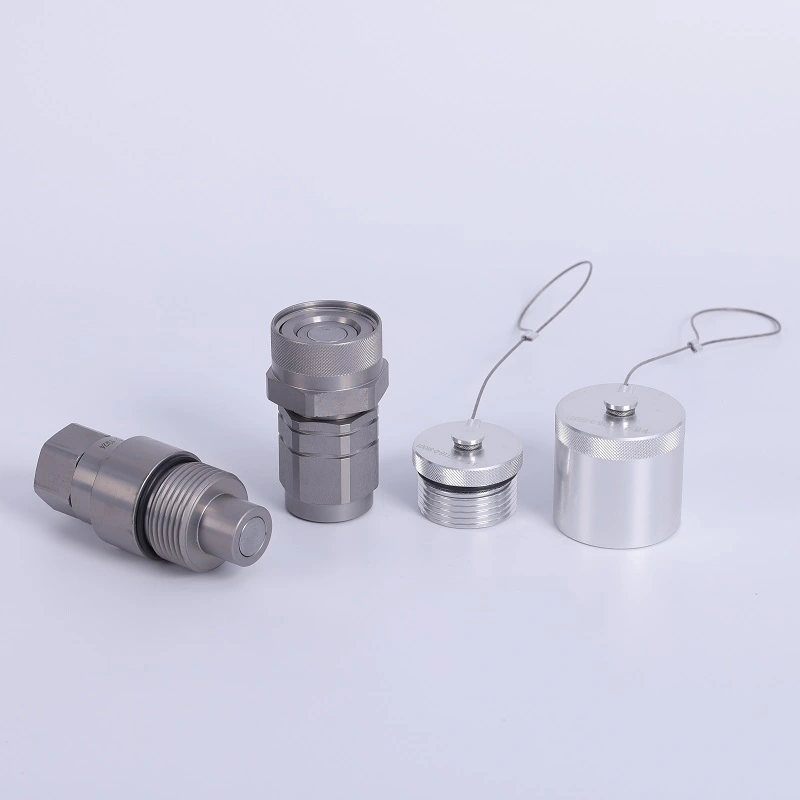

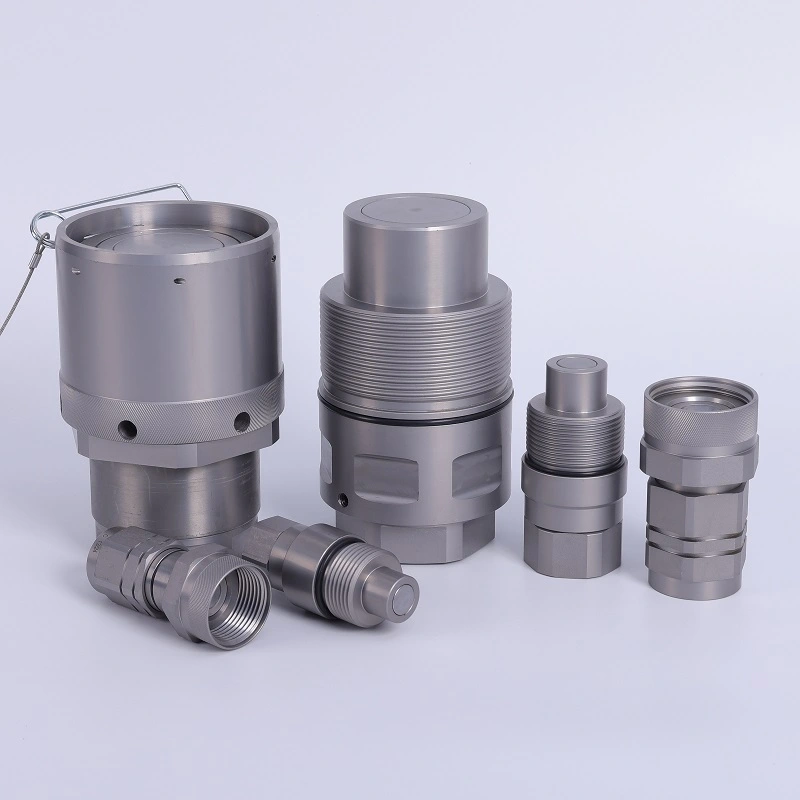

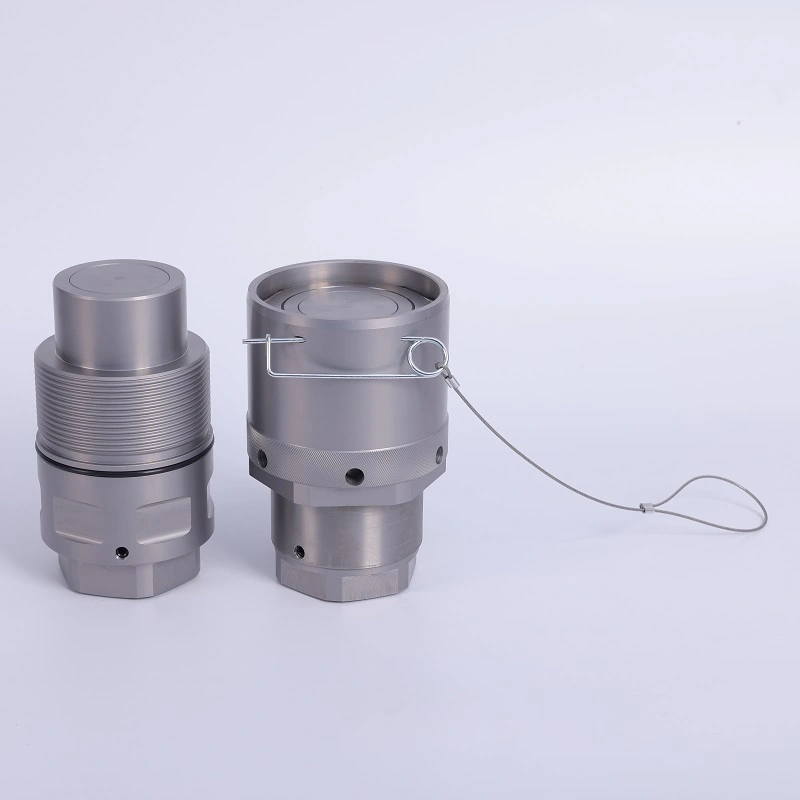

FT Series Flat Face Screw Coupler

Share It :

Featuring a screw connection, these flat face couplers offer secure, leak-free performance, suitable for various hydraulic systems requiring robust and reliable connections.

Feature of FT Series Flat Face Screw Coupler

Interchange: Interchangeable with similar couplings
Occlusion: Flat face
Locking: Screw
Optional material: Carbon steel
Finishing: Zn-Fe (Cr III) – Zn-Ni
Thread: BSP – NPT – SAE
Standard seals: NBR/PU
Working temperature: -25 ℃ +100 ℃
Optional seals: FKM, EPDM or more
Working pressure: 300-450 bar
Operation under pressure: Operation under pressure Allowed
Max operating pressure under pressure: 300bar

Specification of FT Series Flat Face Screw Coupler

Nominal size		Working pressure	Rated flow （ISO）	Max flow rate	Burst pressure			Fluid spillage
Nominal size		Working pressure	Rated flow （ISO）	Max flow rate	Male	Female	Coupled	Fluid spillage
FT	ISO	Mpa	l/min	l/min	Mpa	Mpa	Mpa	cc
FT10	10	35	23	46	130	170	140	0.010
FT12	12.5	35	45	90	140	140	140	0.012
FT16	16	35	74	150	140	140	140	0.015
FT19	19	35	100	200	140	140	140	0.020
FT25	25	35	189	280	140	140	140	0.030
FT30	40	35	288	750	140	140	140	0.200
FT50	50	35	379	1000	110	80	140	0.35

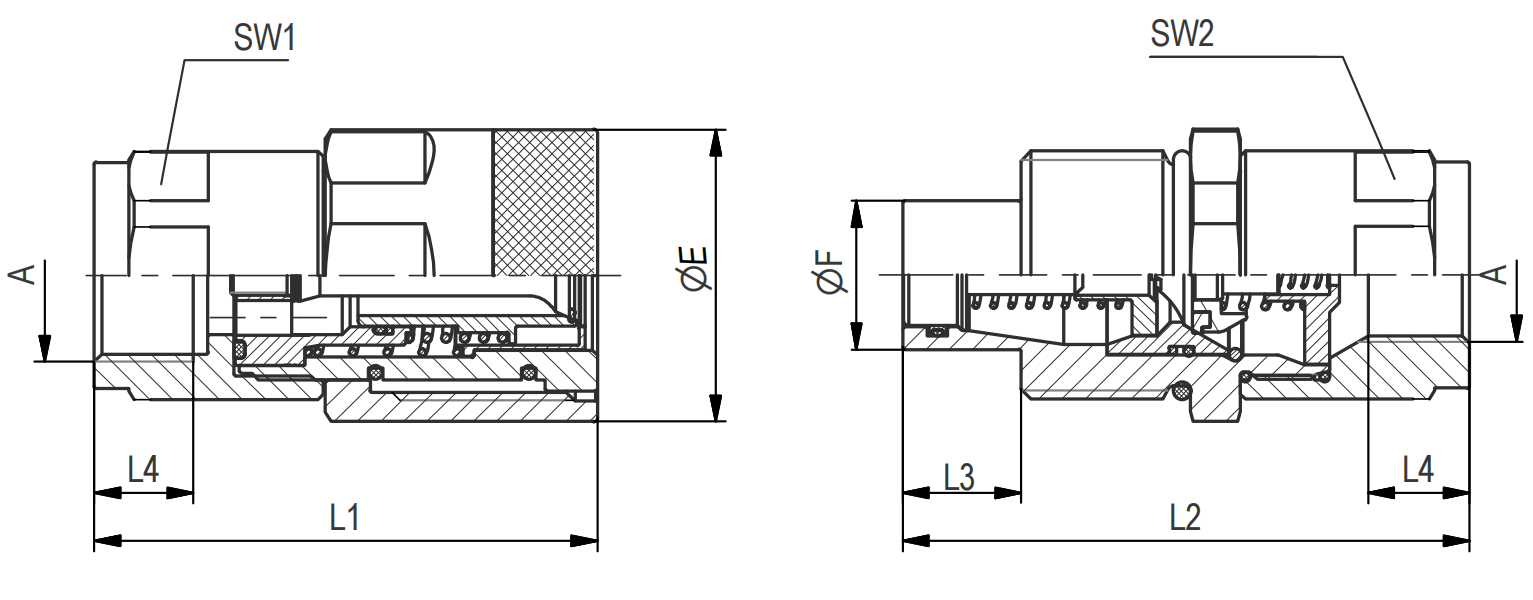

内螺纹DIN 3852 /ANSI B1.20.1 /Female Thread DIN 3852 /ANSI B1.20.1
ISO	A部分 Port A	尺寸									母头	重量	公头	重量
		Dimensions(mm)									Female Body	Weight	Male Tip	Weight
		D	L1	L2	L3	L4	ØE	ØF	SW1	SW2	Part Numbers	(g) ca	Part Numbers	(g) ca
6.3	G1/4		59.5	67.5		13	M30*2		22	22	FT06-F-14BSP	284	FT06-M-14BSP	218
6.3	NPT 1/4		59.5	67.5		13	M30*2		22	22	FT06-F-14NPT	284	FT06-M-14NPT	219
10	G 3/8		75	87	17.8	13	M33*2	19.8	30	30	FT10-F-38BSP	360	FT10-M-38BSP	384
	NPT 3/8		75	87	17.8	13	M33*2	19.8	30	30	FT10-F-38NPT	383	FT10-M-38NPT	397
	G 1/2		75	90	17.8	16	M33*2	19.8	30	30	FT10-F-12BSP	365	FT10-M-12BSP	379
	NPT 1/2		75	90	17.8	16	M33*2	19.8	30	30	FT10-F-12NPT	369	FT10-M-12NPT	385
12.5	G 1/2		85	96	19.5	16	M40*3	24.6	36	36	FT12-F-12BSP	657	FT12-M-12BSP	671
	NPT 1/2		85	96	19.5	16	M40*3	24.6	36	36	FT12-F-12NPT	617	FT12-M-12NPT	731
	G 3/4		85	100	19.5	18	M40*3	24.6	36	36	FT12-F-34BSP	625	FT12-M-34BSP	691
	NPT 3/4		85	100	19.5	18	M40*3	24.6	36	36	FT12-F-34NPT	630	FT12-M-34NPT	675
16	G 3/4		85	110	19.4	18	M45*3	27	41	41	FT16-F-34BSP	803	FT16-M-34BSP	963
	NPT 3/4		85	110	19.4	18	M45*3	27	41	41	FT16-F-34NPT	798	FT16-M-34NPT	969
	G 1		87	112	19.4	20	M45*3	27	41	41	FT16-F-1BSP	768	FT16-M-1BSP	928
19	G 3/4		101	115	23.9	18	M50*3	30	46	46	FT19-F-34BSP	1355	FT19-M-34BSP	1061
	G 1		101	115	23.9	20	M50*3	30	46	46	FT19-F-1BSP	1298	FT19-M-1BSP	1014
	NPT 1		101	115	23.9	20	M50*3	30	46	46	FT19-F-1NPT	1320	FT19-M-1NPT	1028
25	G 1 1/4		108	125	24.9	22	M58*3	36	55	55	FT25-F-114BSP	1502	FT25-M-114BSP	1897
25	NPT 1 1/4		108	125	24.9	22	M58*3	36	55	55	FT25-F-114NPT	1539	FT25-M-114NPT	1919
40	G 1 1/2		170	180	39.5	24	M79*4	56.6	60	60	FT30-F-112BSP	4422	FT30-M-112BSP	4020
40	NPT 1 1/2		170	180	39.5	24	M79*4	56.6	60	60	FT30-F-112NPT	4442	FT30-M-112NPT	4041
50	G 2		200	206	48	29	M116*4	86	90	90	FT50-F-2BSP	6240	FT50-M-2BSP	5900
50	NPT 2		200	206	48	29	M116*4	86	90	90	FT50-F-2NPT	6270	FT50-M-2NPT	5930
