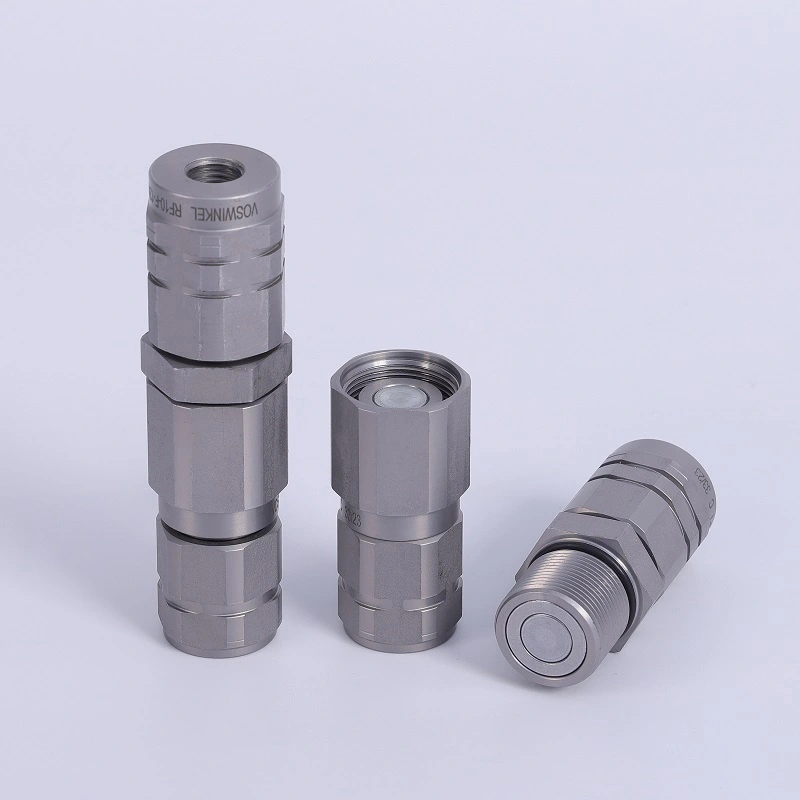

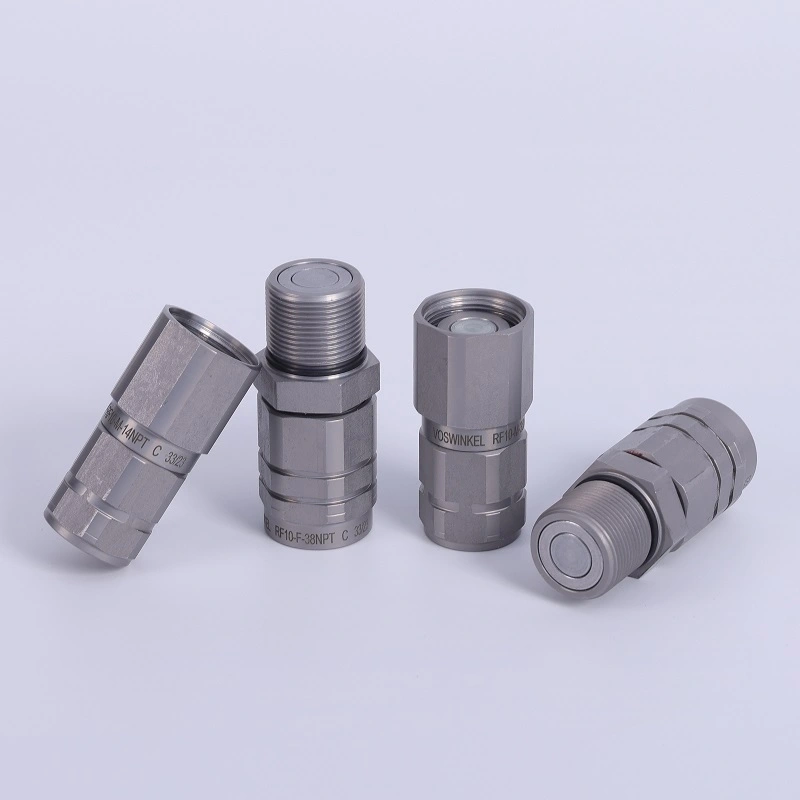

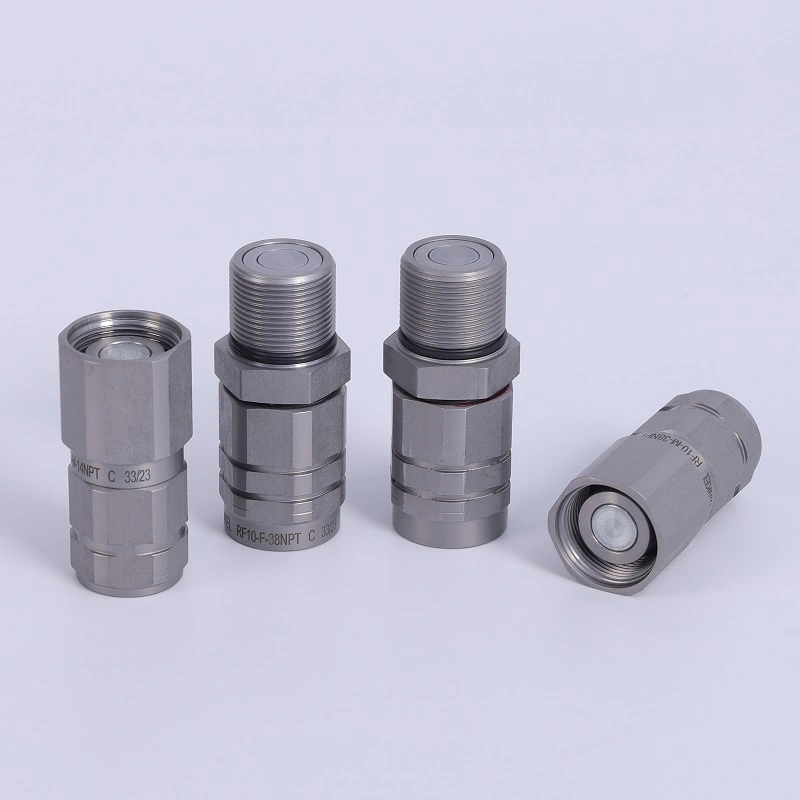

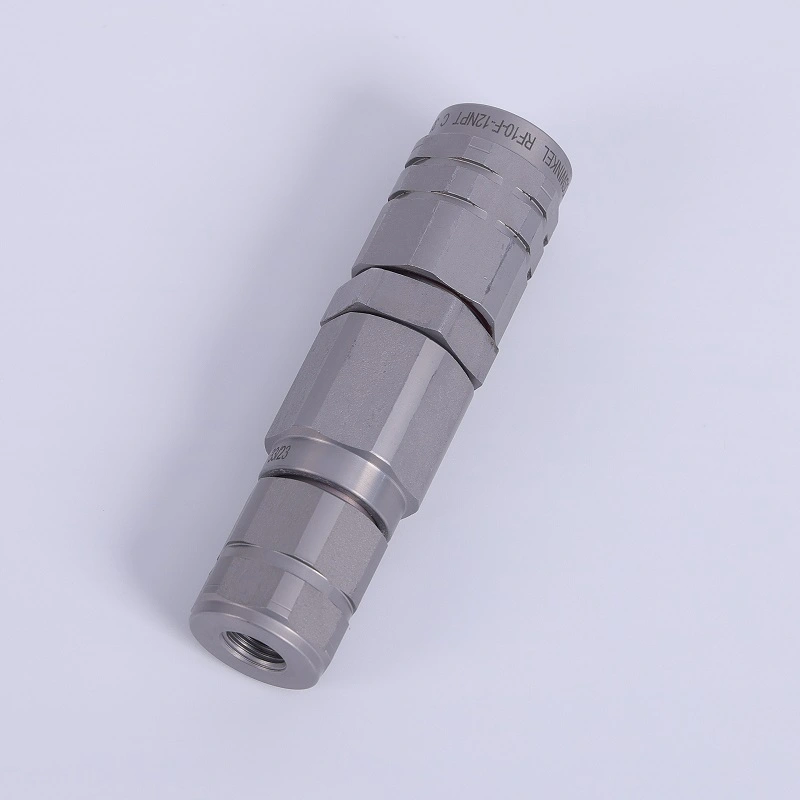

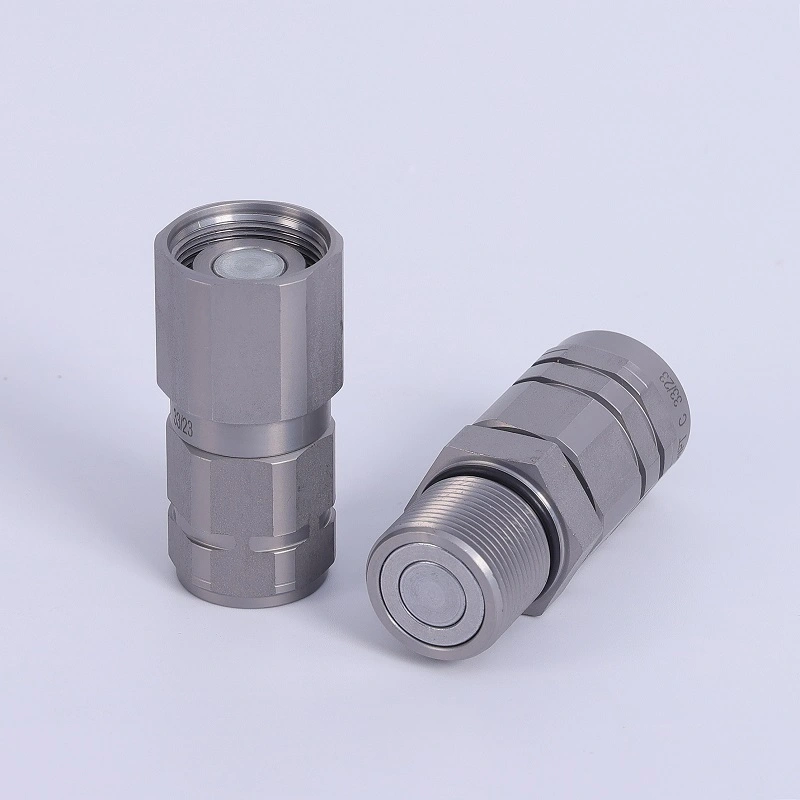

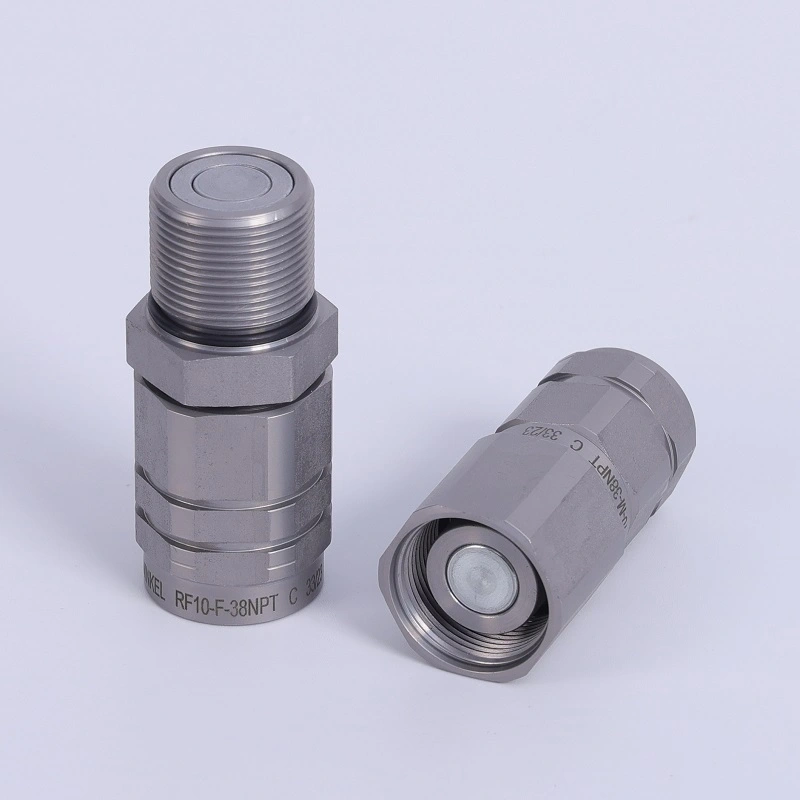

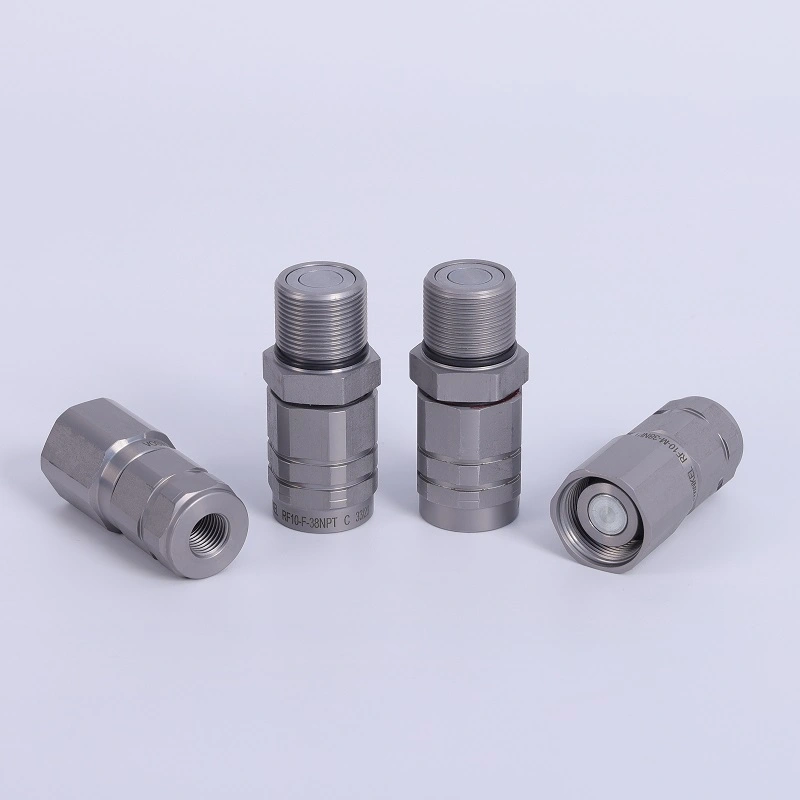

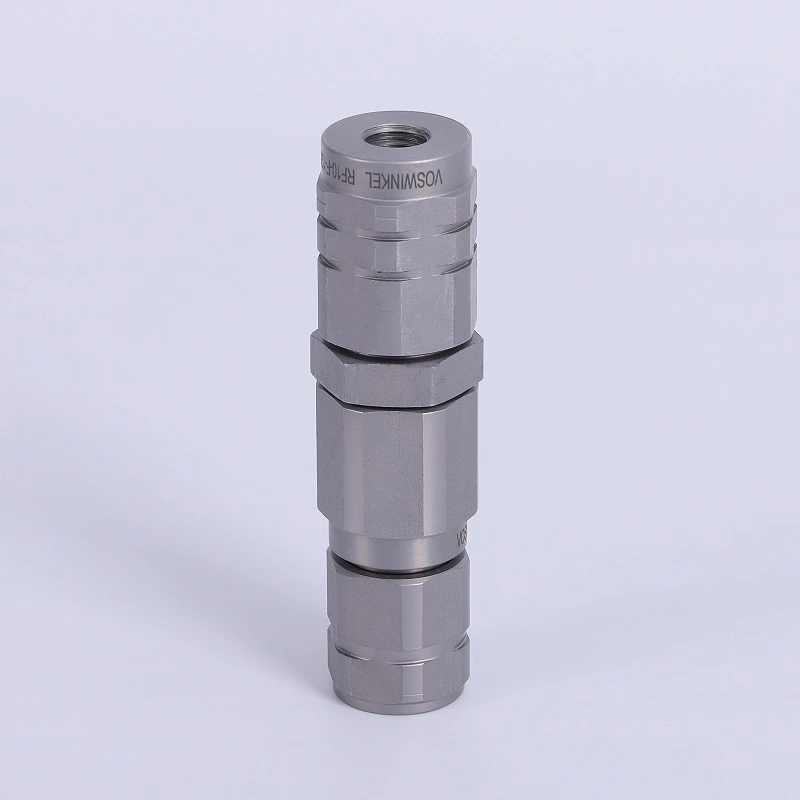

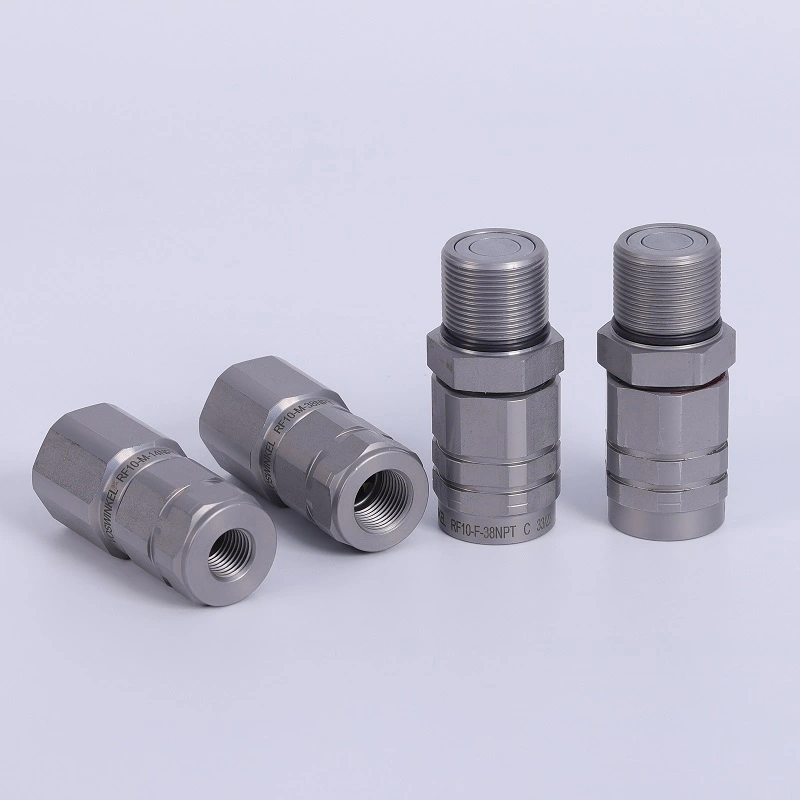

Kuaishi's RF Series Quick Release Couplings for Air Conditioning R134a are designed for efficient, secure connections in AC systems. These couplings ensure leak-proof performance and easy handling, making them ideal for refrigerant transfer and maintenance in automotive and industrial air conditioning applications.
Our RF series quick release couplings for air conditioning R134a are engineered to provide a strong and durable seal for all your air conditioning needs. Invest in reliable air conditioning quick connectors designed for high-pressure systems in commercial HVAC installations.
Nominal size | Working pressure | Rated flow (ISO) | Max flow rate | Burst pressure | Fluid spillage | |||
Male | Female | Coupled | ||||||
RF | ISO | Mpa | l/min | l/min | Mpa | Mpa | Mpa | cc |
RF10 | 10 | 35 | 23 | 50 | 160 | 140 | 170 | 0.012 |
RF16 | 16 | 35 | 74 | 125 | 140 | 140 | 170 | 0.026 |
内螺纹DIN 3852 /Female Thread DIN 3852 | ||||||||||||||
ISO | A部分 Port A | 尺寸 | 母头 | 重量 | 公头 | 重量 | ||||||||
Dimensions(mm) | Female Body | Weight | Male Tip | Weight | ||||||||||
D | L1 | L2 | L3 | L4 | ØE | ØF | SW1 | SW2 | Part Numbers | (g) ca | Part Numbers | (g) ca | ||
10 | G 1/4 | 74.4 | 66.7 | 13 | 22.7 | 32 | M26*1.5 | 30 | 27 | RF10-F-14BSP | 279 | RF10-M-14BSP | 219 | |
NPT 1/4 | 74.4 | 66.7 | 13 | 22.7 | 32 | M26*1.5 | 30 | 27 | RF10-F-14NPT | 279 | RF10-M-14NPT | 219 | ||
G 3/8 | 74.4 | 66.7 | 13 | 22.7 | 32 | M26*1.5 | 30 | 27 | RF10-F-38BSP | 268 | RF10-M-38BSP | 211 | ||
NPT 3/8 | 74.4 | 66.7 | 13 | 22.7 | 32 | M26*1.5 | 30 | 27 | RF10-F-38NPT | 268 | RF10-M-38NPT | 211 | ||
16 | G 3/4 | 83.8 | 81.7 | 18 | 24 | 45 | M36*2 | 36 | 36 | RF16-F-34BSP | 450 | RF16-M-34BSP | 400 | |
NPT 3/4 | 83.8 | 81.7 | 18 | 24 | 45 | M36*2 | 36 | 36 | RF16-F-34NPT | 450 | RF16-M-34NPT | 400 |
SAE J 1926-1 /Male stud with type SAE J 1926-1 | |||||||||||||||
ISO | A部分 Port A | 尺寸 | 母头 | 重量 | 公头 | 重量 | |||||||||
Dimensions(mm) | Female Body | Weight | Male Tip | Weight | |||||||||||
D | L1 | L2 | L3 | L4 | ØE | ØF | G | SW1 | SW2 | Part Numbers | (g) ca | Part Numbers | (g) ca | ||
10 | UNF 5/8 | 10.8 | 77 | 64 | 12 | 22.7 | 32 | M26*1.5 | M30*1 | 30 | 27 | RF10-F-5/8UNF | 264 | RF10-M-5/8UNF | 234 |
16 | UNF 7/8 | 16.7 | 85 | 81.5 | 18 | 24 | 45 | M36*2 | M34*1.5 | 36 | 36 | RF10-F-7/8UNF | 460 | RF10-M-7/8UNF | 385 |
