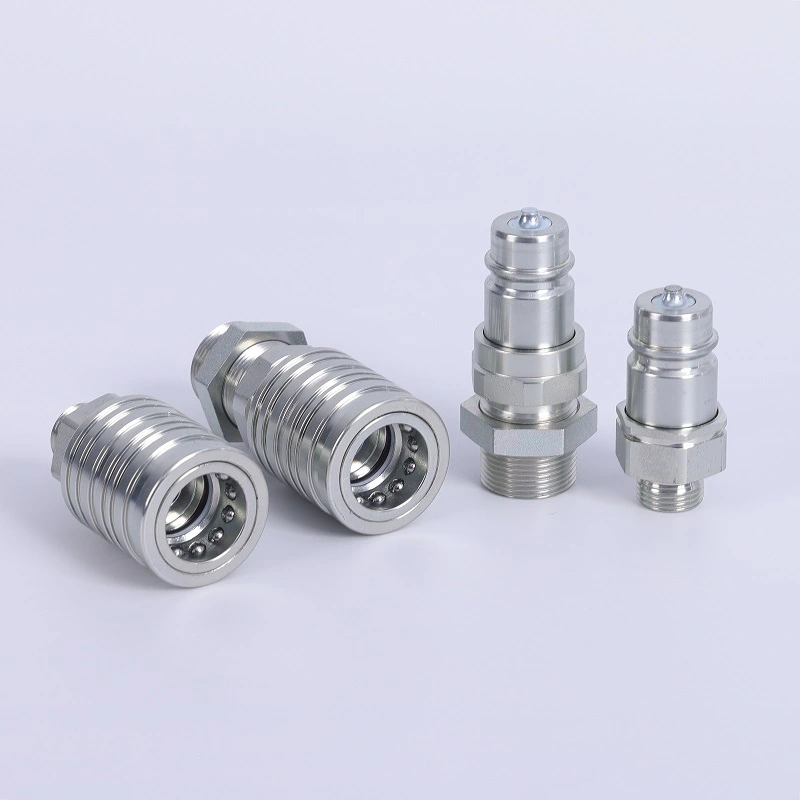

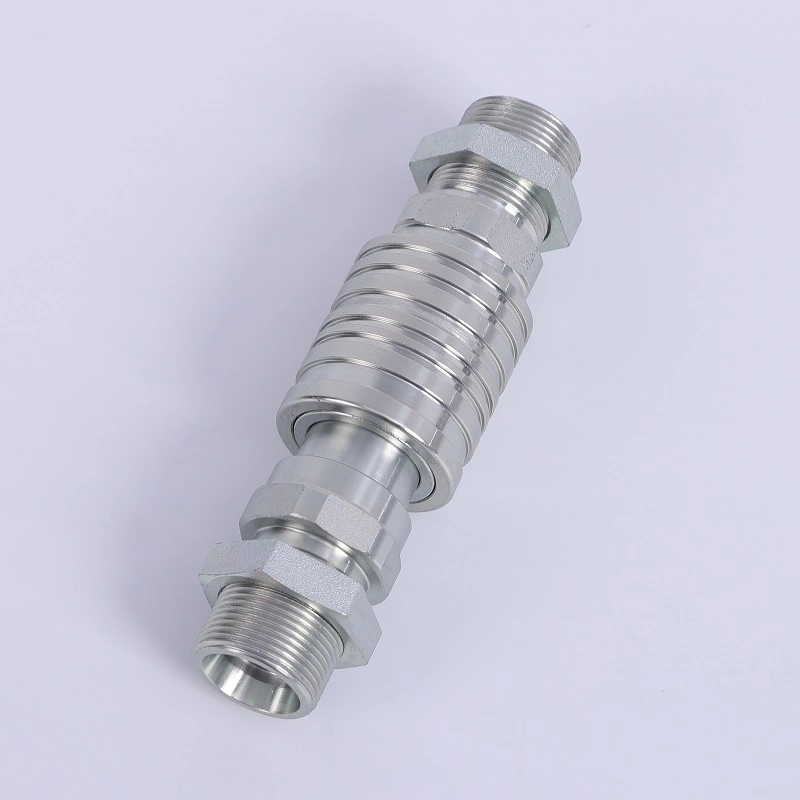

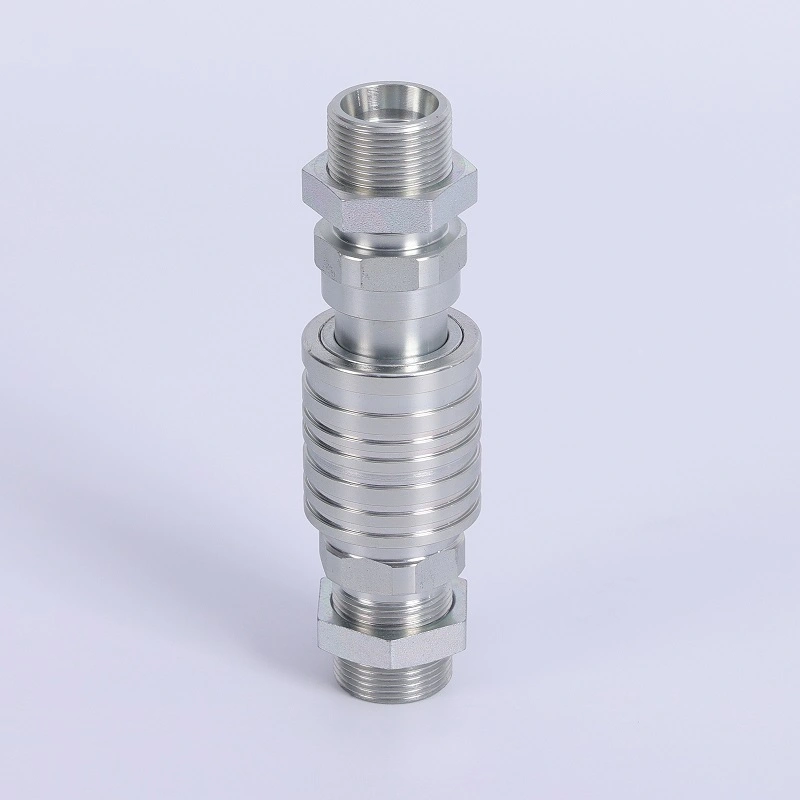

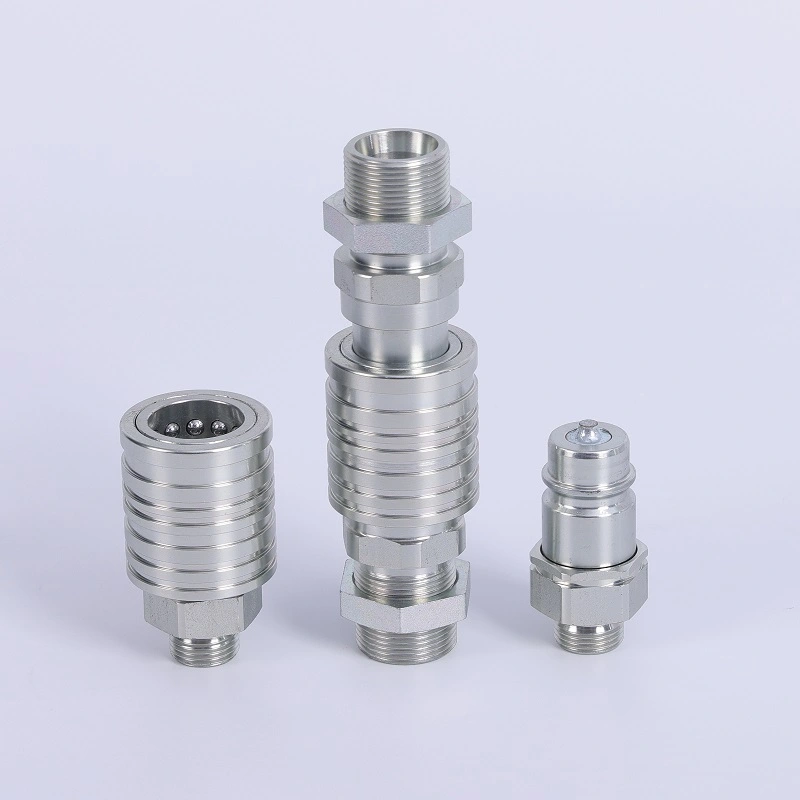

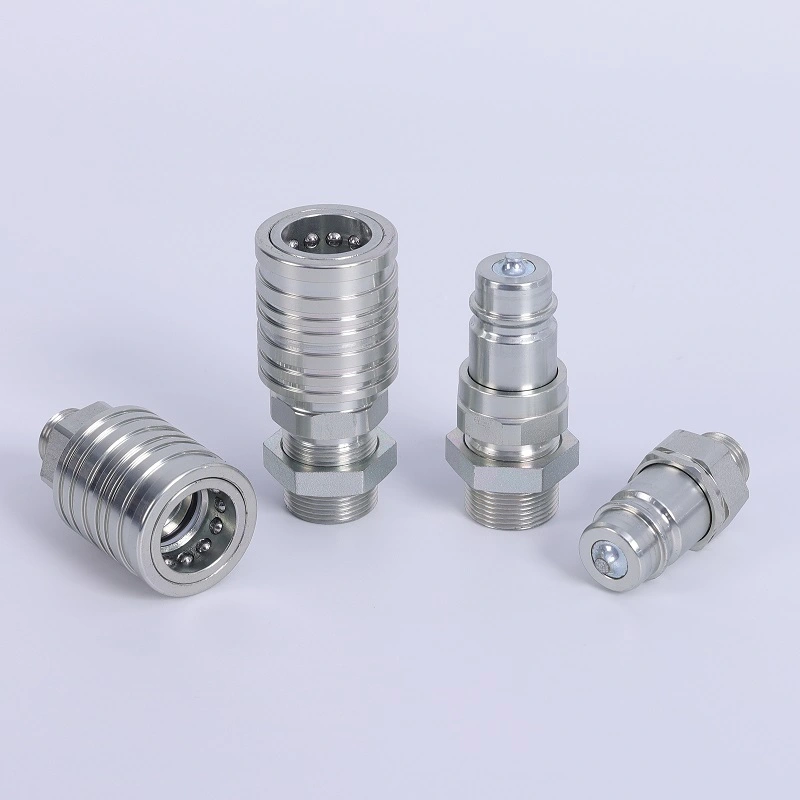

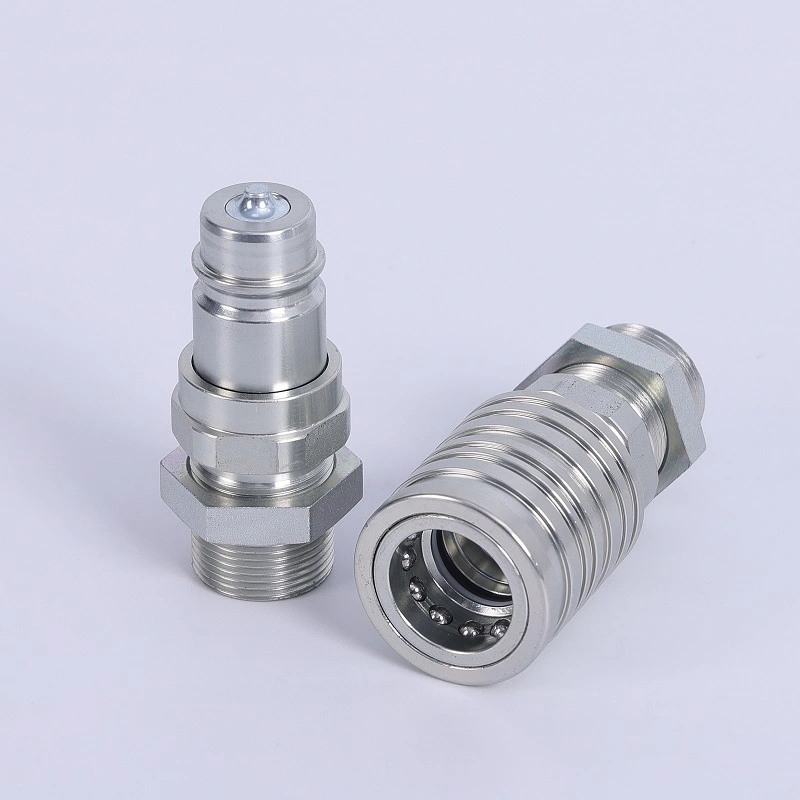

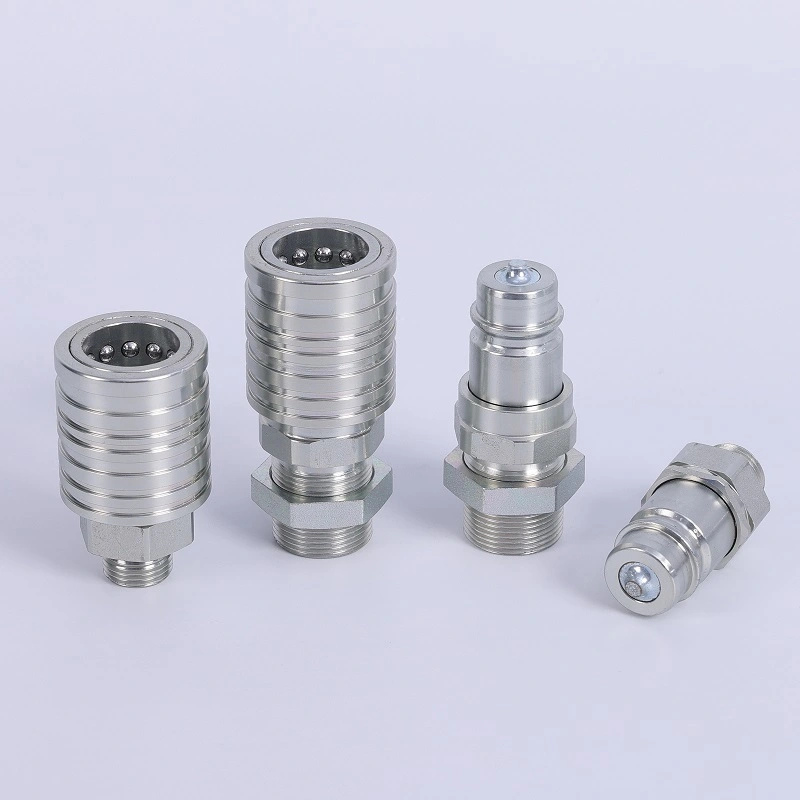

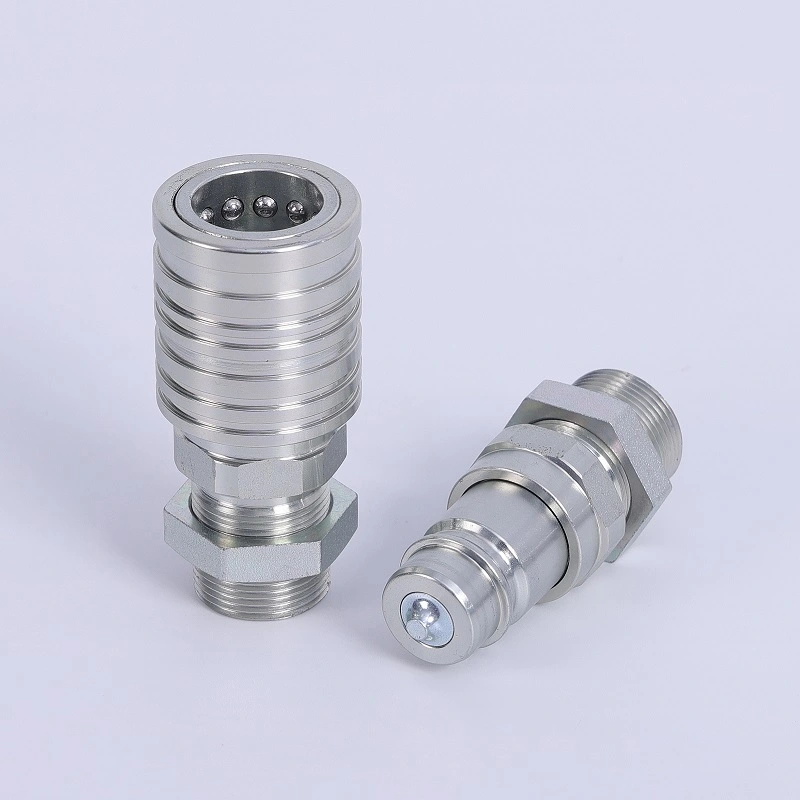

KA1 Push-Pull ISO 7241-1A Series Poppet Coupler

Name: KA1 Push-Pull ISO 7241-1A Series Poppet Coupler
Brand: Shanghai Kuaishi Fluid Technology Co.,Ltd.
Price: 100 USD

Send Mail

Share It :

Kuaishi's KA1 Push-Pull ISO 7241-1A Series Poppet Coupler ensures reliable, quick connections with a push-pull mechanism and ISO 7241-1A compliance. Designed for high-pressure applications, it delivers secure, leak-free performance, making it ideal for use in construction, agriculture, and industrial equipment.

Specification of KA1 Push-Pull ISO 7241-1A Series Poppet Coupler

The innovative design of our KA1 Push-Pull ISO 7241-1A series poppet style quick coupler guarantees quick and hassle-free connections for your hydraulic tools.

Nominal size		Working pressure	Rated flow （ISO）	Max flow rate	Burst pressure			Fluid spillage
Nominal size		Working pressure	Rated flow （ISO）	Max flow rate	Male	Female	Coupled	Fluid spillage
KA1	ISO	Mpa	l/min	l/min	Mpa	Mpa	Mpa	cc
KA1 06	6.3	30	12	24		120	140	0.5
KA1 10	10	25	23	46		100	160	1.9
KA1 13	12.5	25	45	90		110	190	2.7
KA1 20	20	25	100	200		110	140	8
KA1 25	25	25	189	280		100	140	10
