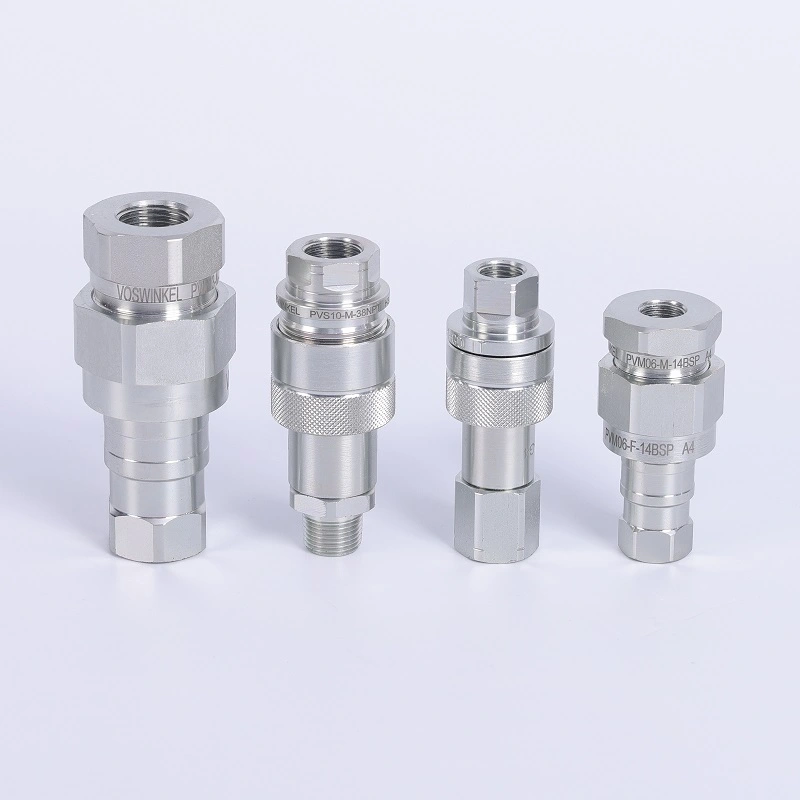

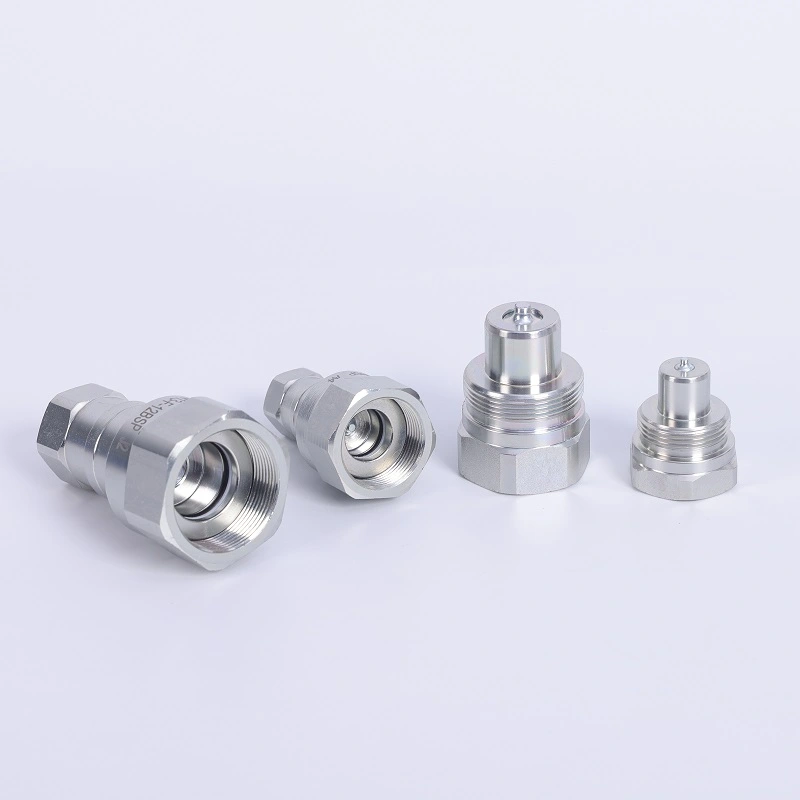

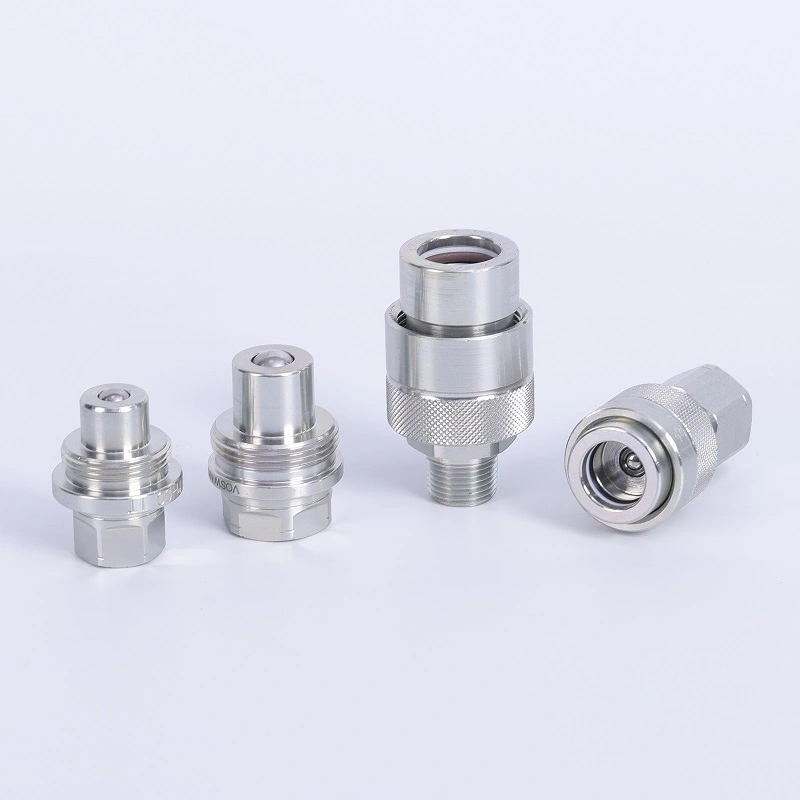

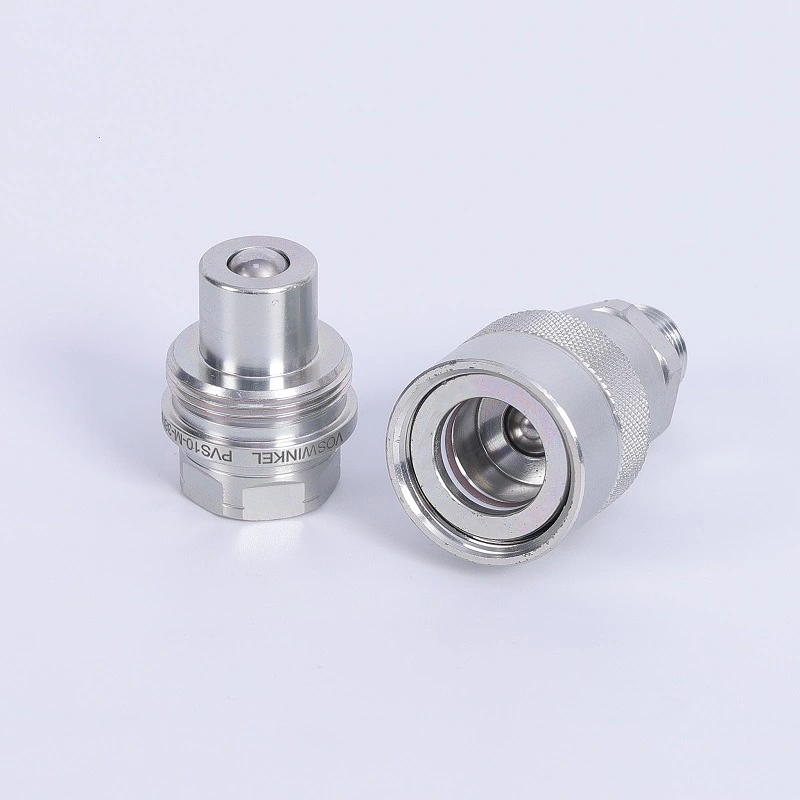

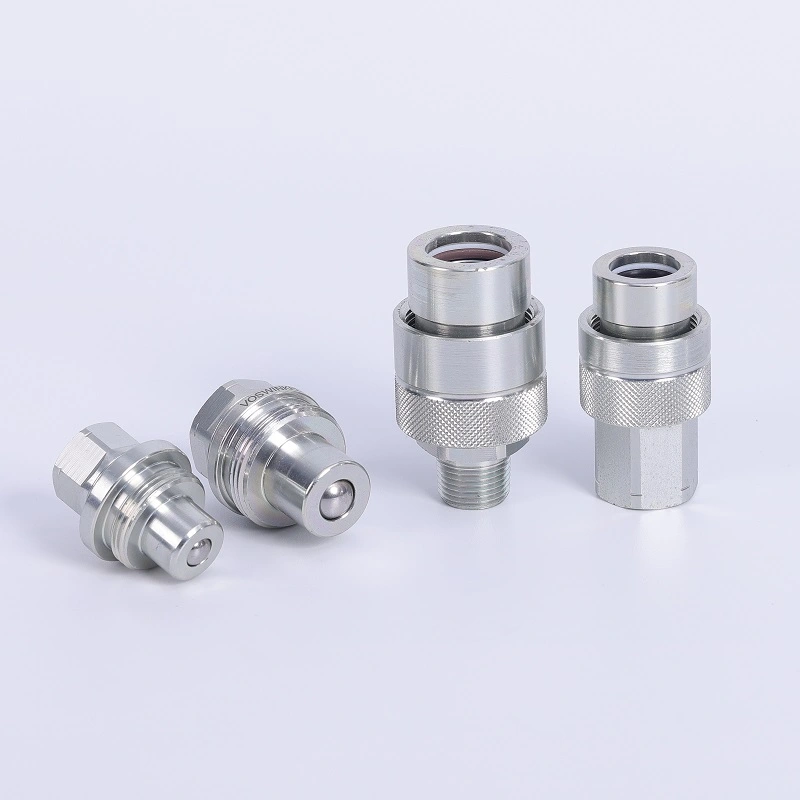

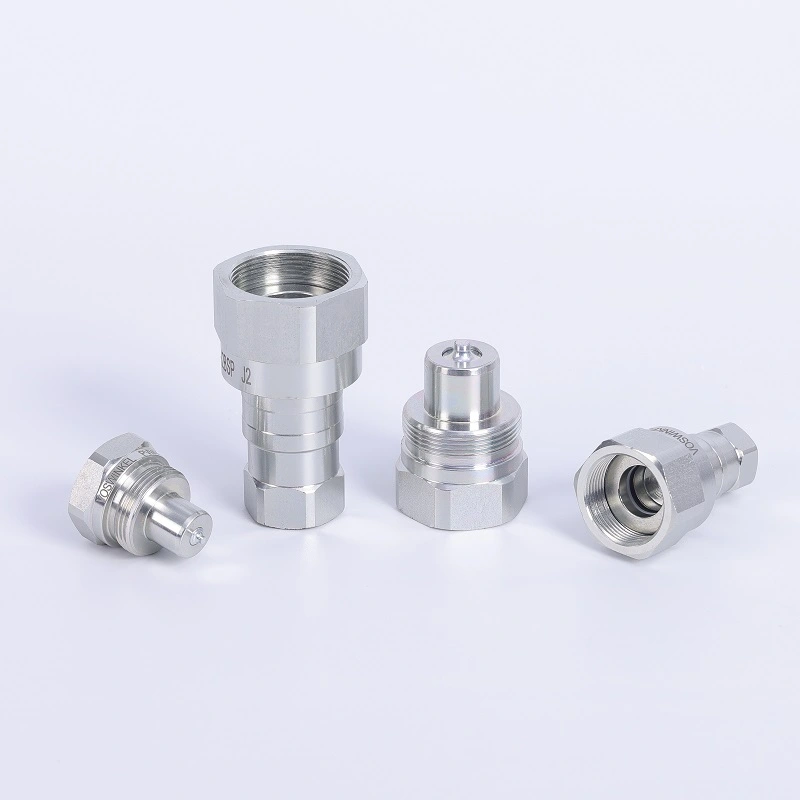

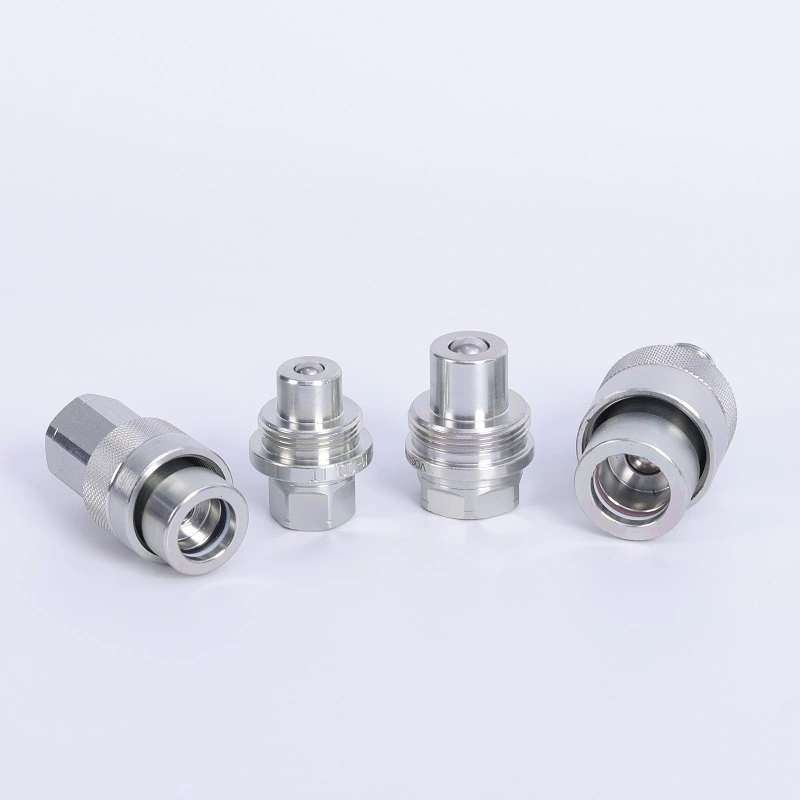

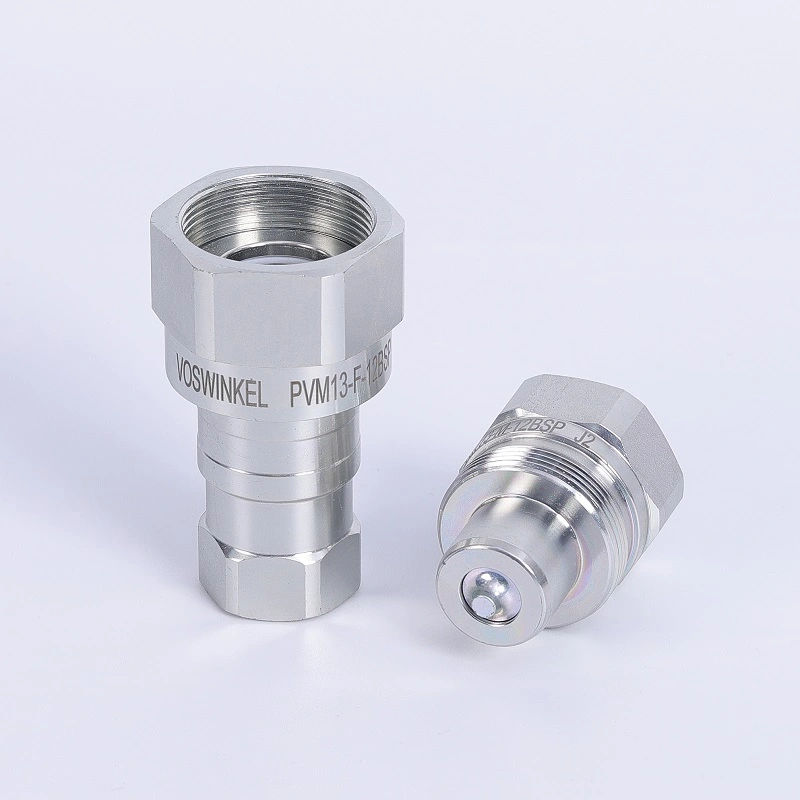

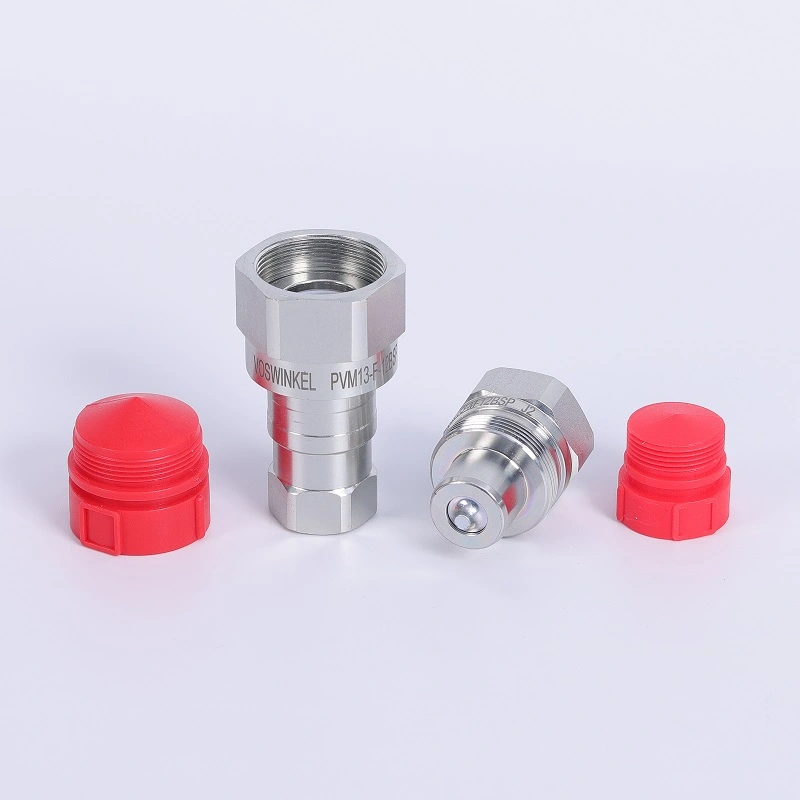

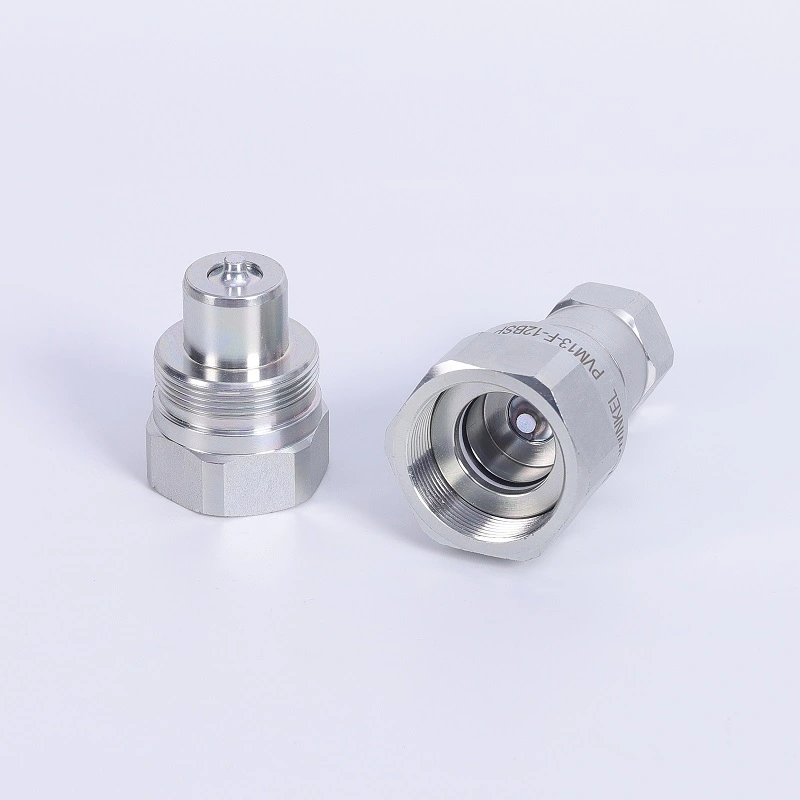

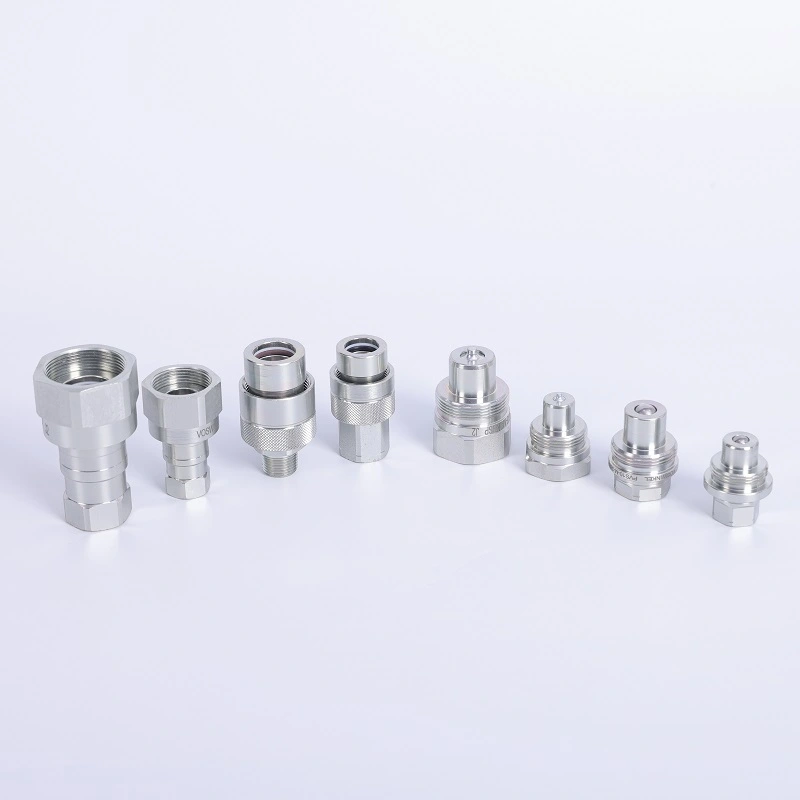

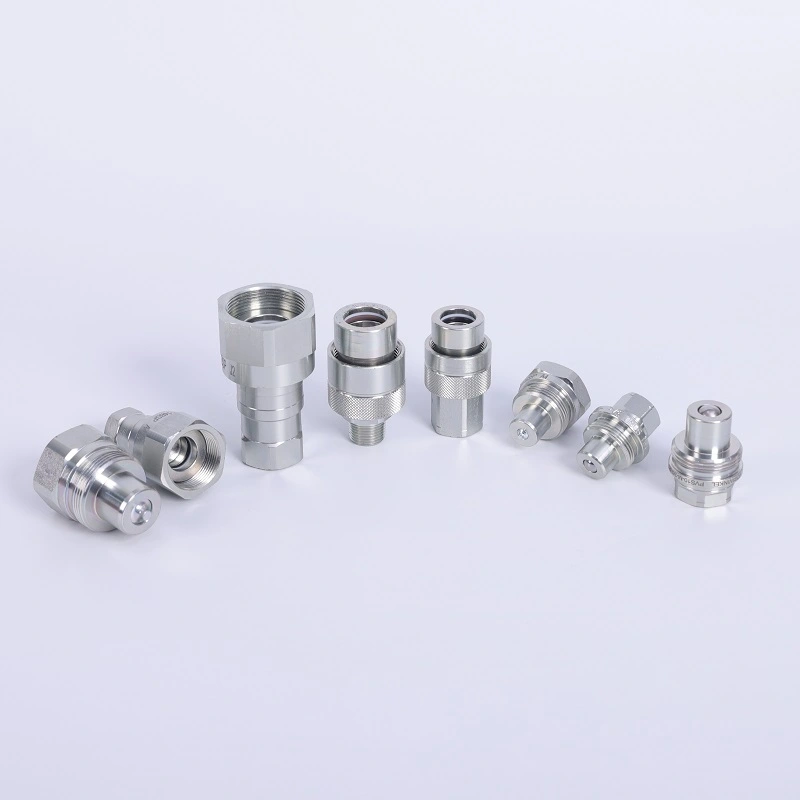

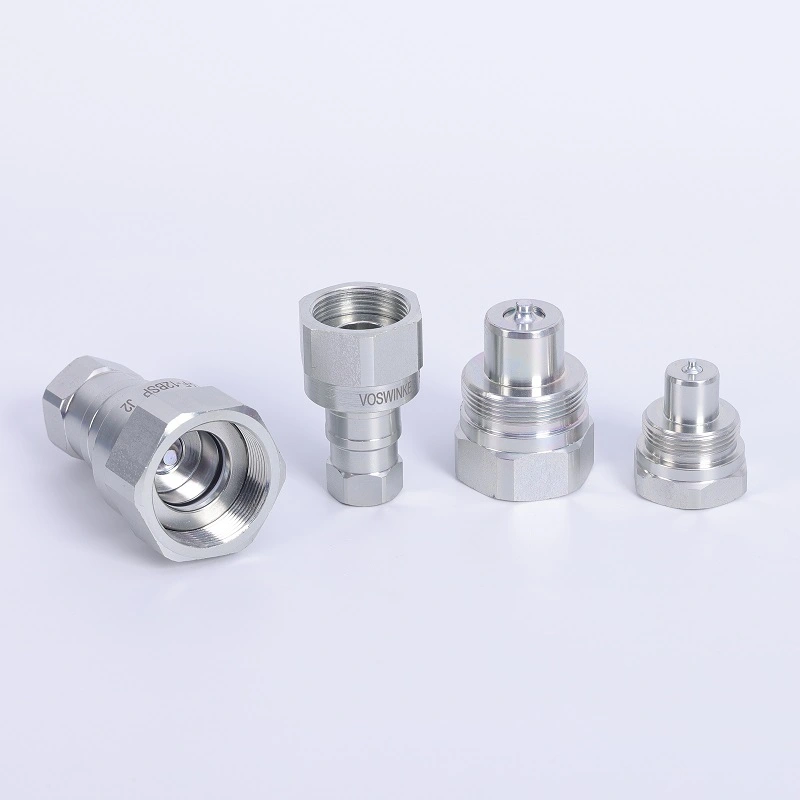

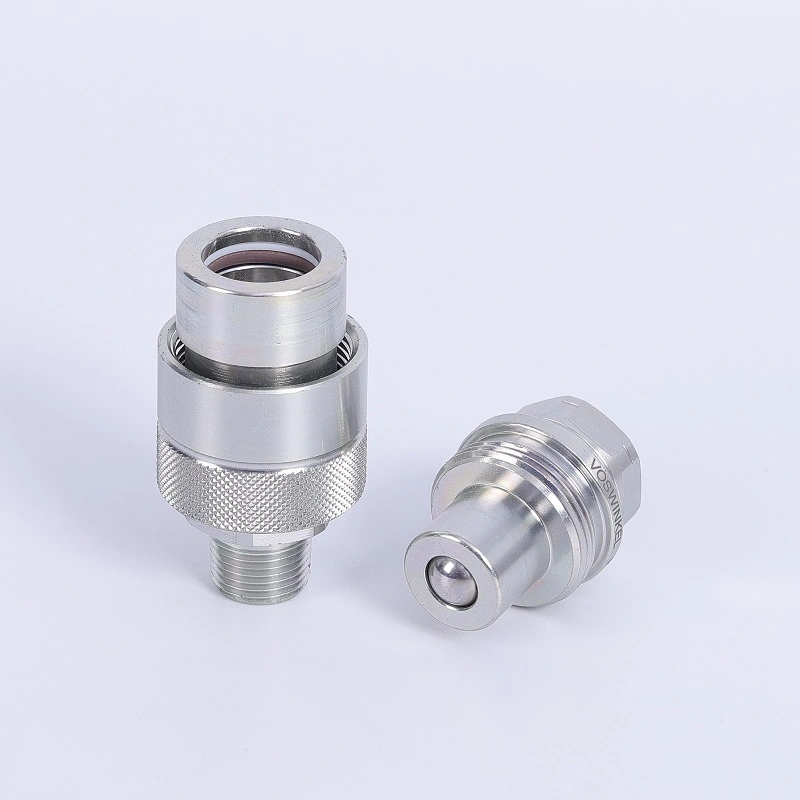

ISO 14540 compliant ultra high-pressure quick couplings, engineered for 70MPa applications, providing reliable, leak-free performance.
Standard: ISO 14540
Occlusion: Poppet, Steel ball
Locking: Screw
Optional material: Carbon steel
Finishing Zn-Fe (Cr III)
Thread: BSP – NPT
Standard seals: NBR
Working temperature: -25 ℃ +100 ℃
Optional seals: FKM, EPDM or more
Working pressure: 700 bar
Operation under pressure: Allowed (Both male and female bodies)
Max operating pressure under pressure: 100 bar
| Nominal size | Working pressure | Rated flow (ISO) | Max flow rate | Burst pressure | Fluid spillage | |||
| Male | Female | Coupled | ||||||
| HBS | ISO | Mpa | 1/min | 1/min | Mpa | Mpa | Mpa | cc |
| HBS06 | 6.3 | 70 | 5 | 10 | 270 | 200 | 220 | 0.2 |
| HBS10 | 10 | 70 | 9 | 20 | 280 | 300 | 330 | 0.6 |
| 内螺纹DIN 3852 /ANSI B1.20.1 /Female Thread DIN 3852 /ANSI B1.20.1 | ||||||||||||||

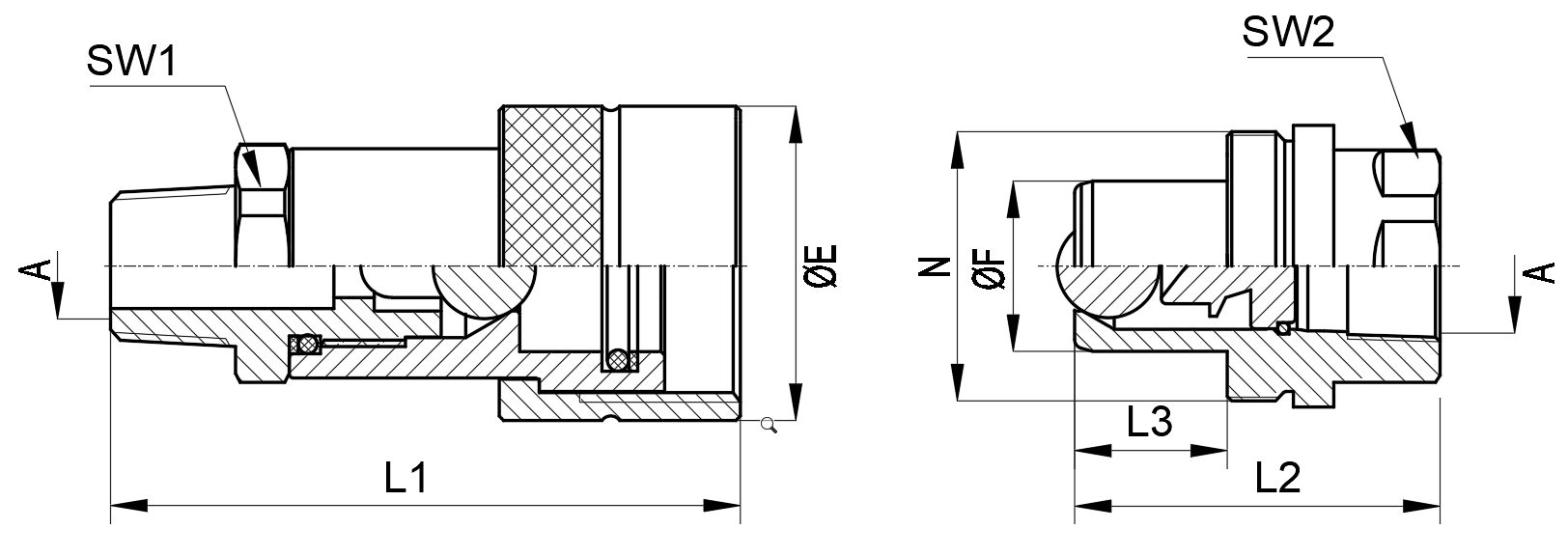

| ISO | A部分 Port A | 尺寸 | 母头 | 重量 | 公头 | 重量 | ||||||||
| Dimensions(mm) | Female Body | Weight | Male Tip | Weight | ||||||||||
| D | L1 | L2 | L3 | N | ØE | ØF | SW1 | SW2 | Part Numbers | (g) ca | Part Numbers | (g) ca | ||
| 6.3 | NPT 1/4 | 56 | 39 | 11.2 | 1"-18UNS | 30 | 15.8 | 22 | 19 | HBS06-F-14NPT | 162 | HBS06-M-14NPT | 120 | |
| 10 | G 3/8 | 62 | 40.9 | 16 | 1"3/16-16UN | 35 | 19 | 24 | 24 | HBS10-F-38BSP | 249 | HBS10-M-38BSP | 144 | |
| NPT 3/8 | 62 | 40.9 | 16 | 1"3/16-16UN | 35 | 19 | 24 | 24 | HBS10-F-38NPT | 250 | HBS10-M-38NPT | 145 | ||
| 外螺纹24°锥形DIN 3861 /Male stud with type W bore (24°) to DIN 3861 | ||||||||||||||
| ISO | A部分 Port A | 尺寸 | 母头 | 重量 | 公头 | 重量 | ||||||||
| Dimensions(mm) | Female Body | Weight | Male Tip | Weight | ||||||||||
| D | L1 | L2 | L3 | L4 | ØE | ØF | SW1 | SW2 | Part Numbers | (g) ca | Part Numbers | (g) ca | ||
| 6.3 | NPT 1/4 | 53 | 30 | 22 | HBS06-F-14ANF | 130 | ||||||||
| 10 | NPT 3/8 | 62 | 35 | 24 | HBS10-F-38ANF | 165 | ||||||||
